Birdboss RAILBLAZA StarPort Adaptor Base
- In stock, ready to ship
- Backordered, shipping soon
Product code: BRAB
The Birdboss RAILBLAZA StarPort Adaptor Base (BRAB) connects your Birdboss to the RAILBLAZA StarPort mounting system. It incorporates a genuine RAILBLAZA StarPort Adaptor, so Birdboss can click into any compatible RAILBLAZA mount – on rails, biminis, pontoons, inflatable boats, RIBs and flat surfaces – and be removed again in seconds.
Key Features
- Connects Birdboss to compatible RAILBLAZA mounts
- Allows Birdboss to be installed and removed quickly
- Incorporates a genuine RAILBLAZA StarPort Adaptor
- No drilling or modification to your Birdboss Base Kit required
- Opens up more installation options for boats, pontoons, rails, biminis and inflatables
- When Birdboss is removed, the RAILBLAZA mount can be used for other compatible accessories
What’s Included

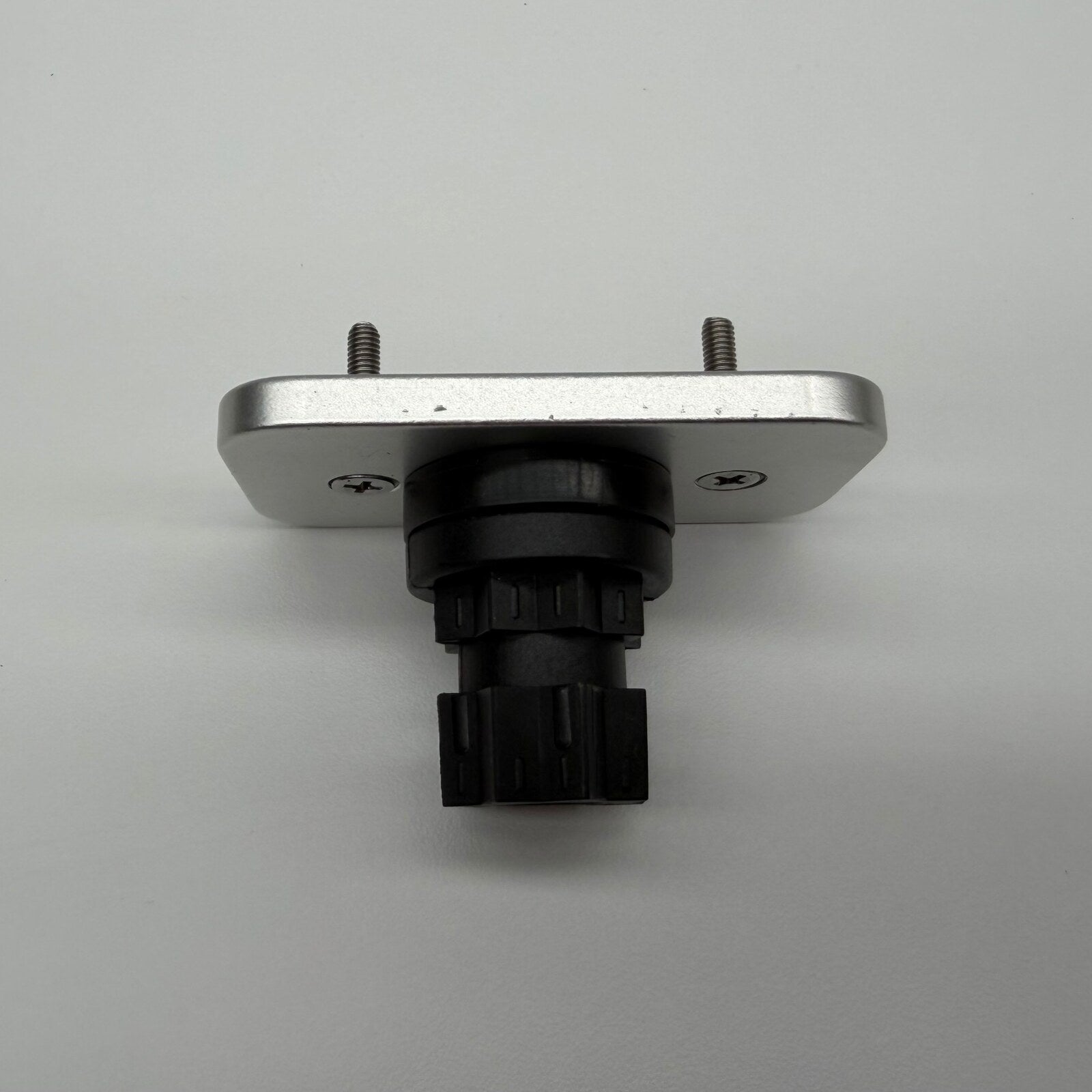

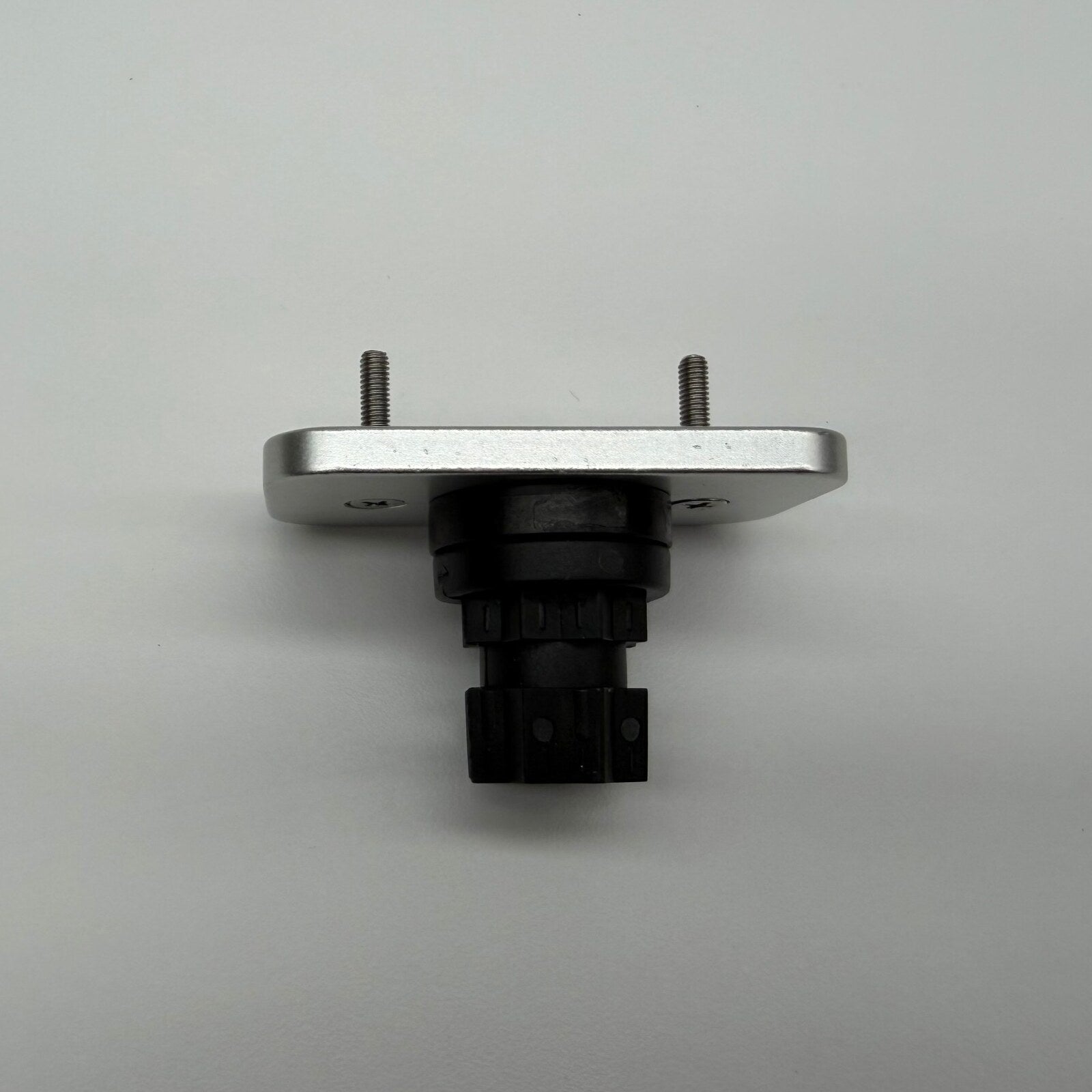

- 5 mm aluminium adaptor plate with two stainless-steel threaded studs
- Genuine RAILBLAZA StarPort Adaptor, fitted beneath the plate with countersunk stainless-steel screws
- Stainless-steel Nyloc nuts to secure the Birdboss base
Specifications
- Dimensions: 70 x 40 x 44 mm
- Materials: 5 mm aluminium adaptor plate, stainless-steel mounting hardware, genuine RAILBLAZA StarPort Adaptor, UV-stabilised marine-grade polymer components
What You Need
- A Birdboss unit
- This Birdboss RAILBLAZA StarPort Adaptor Base (BRAB)
- A compatible RAILBLAZA mount to suit your boat or installation (see below)
Please note: the Birdboss unit and the RAILBLAZA mount are sold separately unless specifically advertised as a package. You will need to select the right RAILBLAZA mount for your boat or installation – our Which Railblaza Mount Do I Need? guide will help.
Compatible RAILBLAZA Mounts
- Bimini Rail Mount – bimini frames (round 19–25 mm, square 28–32 mm)
- Pontoon Boat RailMount 28–32 mm – 28–32 mm pontoon boat rails
- RailMount 19–25 mm – 19–25 mm boat rails
- RailMount 32–41 mm – 32–41 mm boat rails
- StarPort – Black – permanent deck or flush mounting on flat surfaces
- StarPort HD – Black – heavy-duty four-point mounting, replaces many existing bases
- RIBPort including StarPort and 3M VHB – Grey – inflatable boats and RIBs, no drilling
- QuikPort with VHB – Black – small adhesive mount for flat surfaces, no drilling
- Titan Grip Suction Mount – temporary mounting on smooth surfaces
How It Connects to Birdboss
The Birdboss pivot base fits over the two stainless-steel threaded studs on top of the aluminium adaptor plate and is secured with the supplied stainless-steel Nyloc nuts. The genuine RAILBLAZA StarPort Adaptor is fastened beneath the plate with two countersunk stainless-steel screws and locks directly into compatible RAILBLAZA StarPort mounts.
Once assembled, the complete Birdboss clicks into your chosen RAILBLAZA mount and can be removed in seconds. The RAILBLAZA mount stays on the boat, ready for next time.
Installation and Safety Notes
- Remove Birdboss when the boat is under way and in extreme winds (over 40 knots).
- Position Birdboss so the arms can rotate freely, clear of rigging, antennas, canopies and people.
- Adjust the Birdboss arms evenly so the unit stays balanced.
- Check the mount, StarPort lock and Birdboss fittings regularly, especially after rough weather.
- Rinse the mount and BRAB with fresh water after exposure to salt spray.
Not sure which mount suits your boat? Send us a photo and measurements and we’ll recommend the best option.
