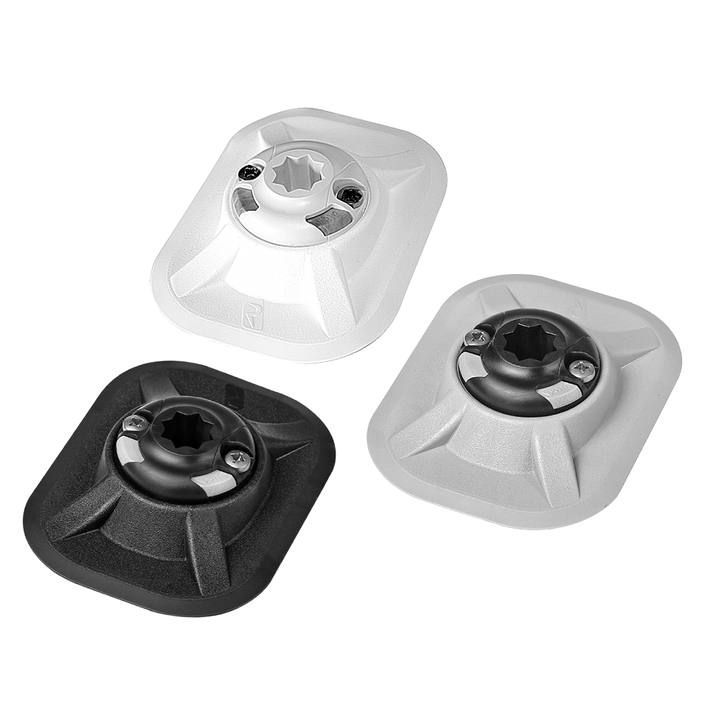

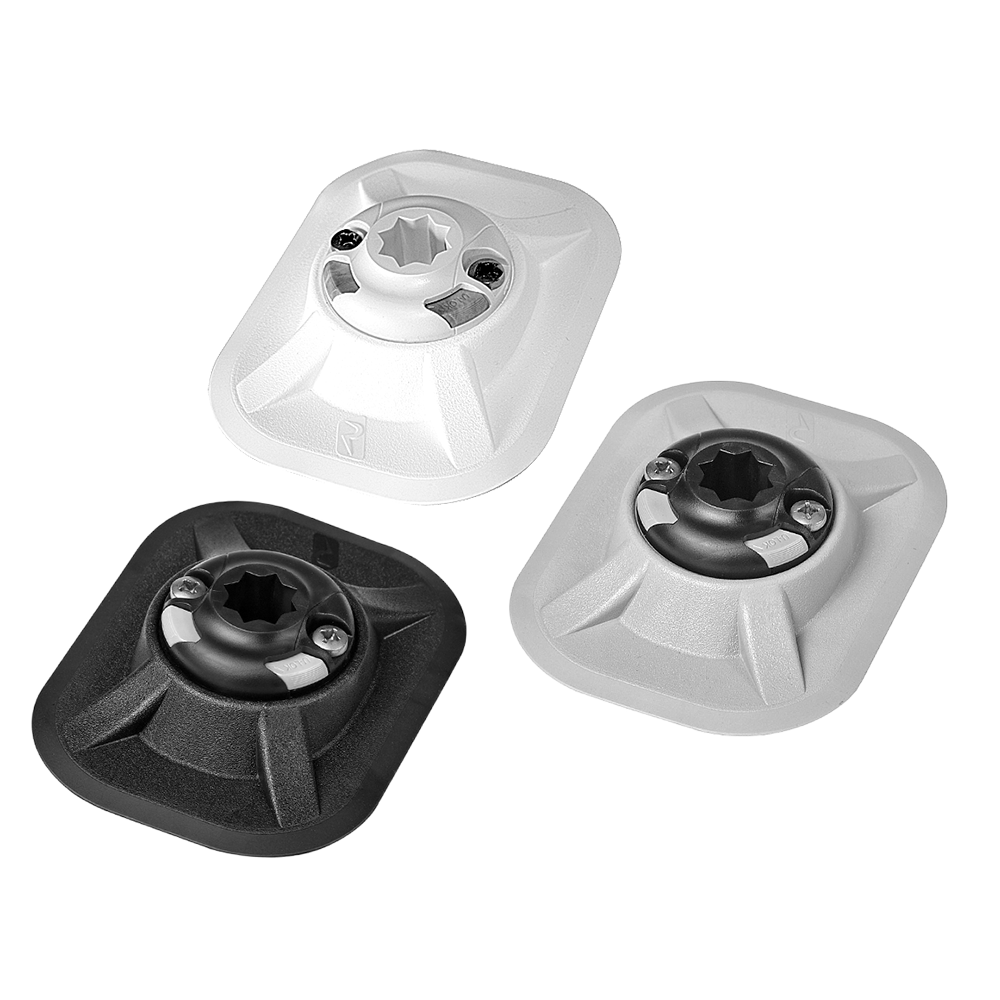

RIBPort including StarPort and 3M VHB – Grey
- In stock, ready to ship
- Backordered, shipping soon
Product code: 03-4064-11 | Brand: Genuine RAILBLAZA
The RAILBLAZA RIBPort gives inflatable boats, RIBs and other smooth surfaces a secure StarPort mounting point without cutting or drilling. Its large 115 x 150 mm base is bonded in place with a 3M VHB adhesive pad, spreading the load across the surface – ideal for fitting Birdboss to a tender or RIB with the Birdboss RAILBLAZA StarPort Adaptor Base (BRAB).
Suitable Locations and Applications

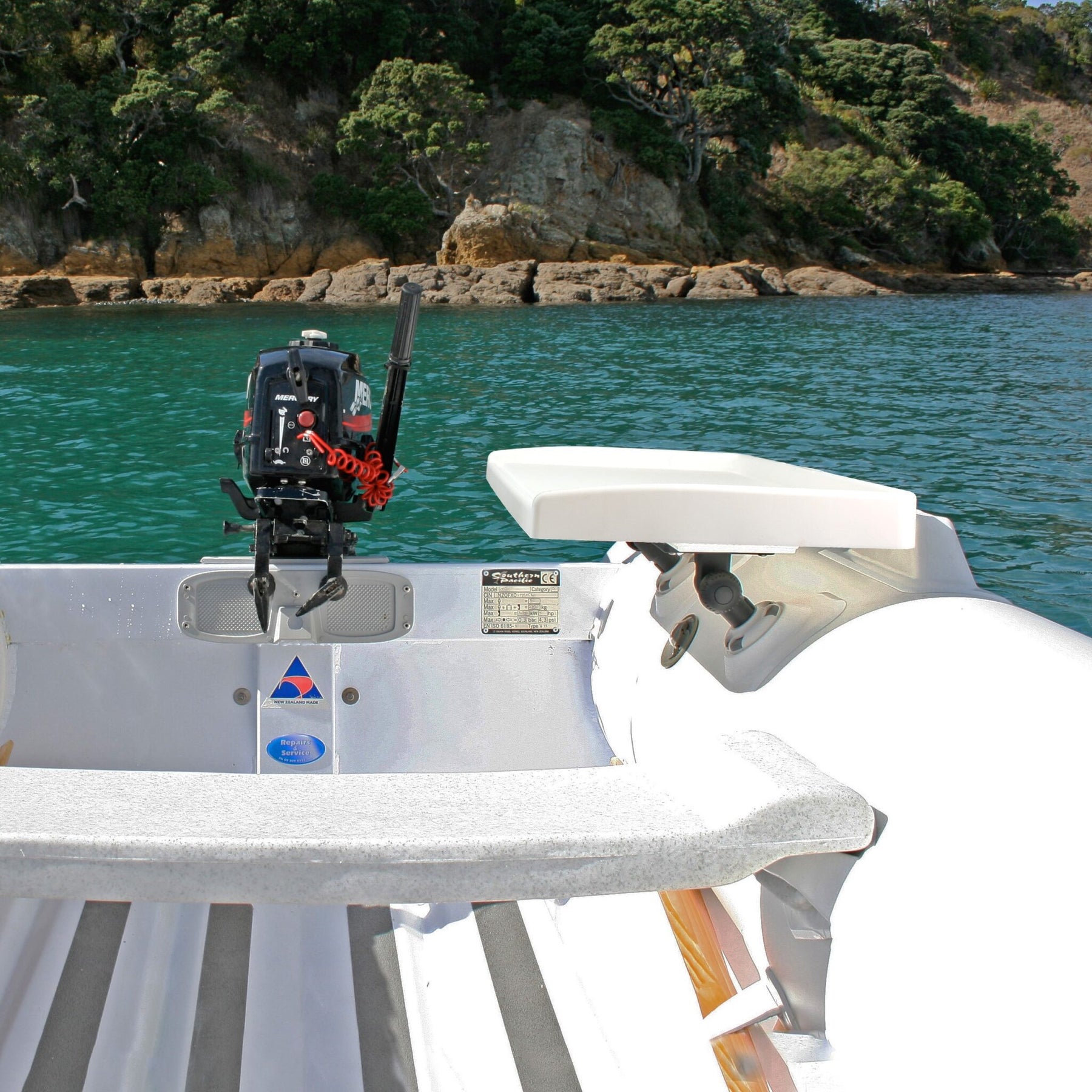

- Inflatable boats, RIBs and tenders

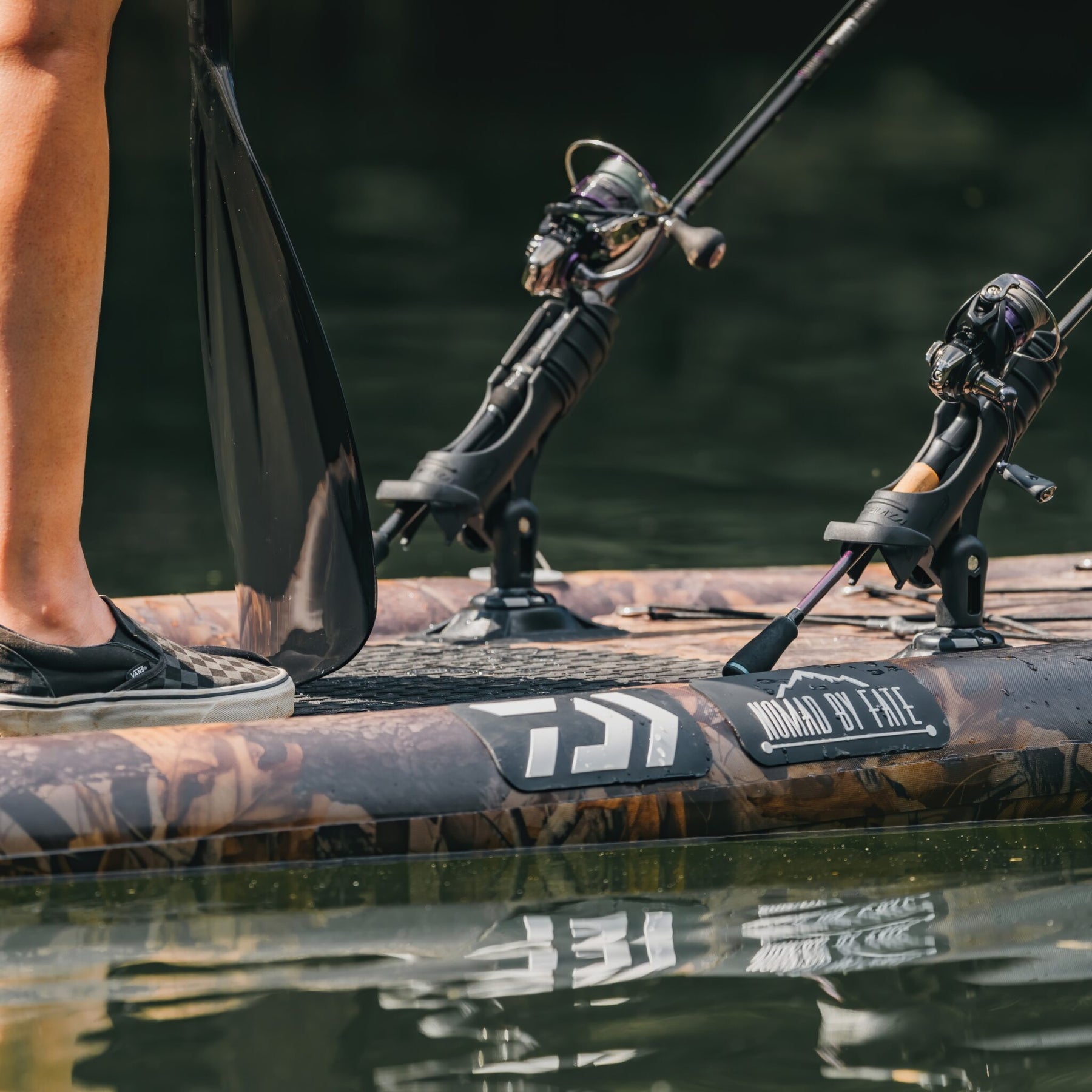

- SUPs, kayaks and coolers
- Flat or gently curved smooth surfaces where drilling is not desirable
How It Connects to Birdboss
This mount has a built-in RAILBLAZA StarPort socket. Fit the Birdboss RAILBLAZA StarPort Adaptor Base (BRAB) to your Birdboss, insert it into the StarPort and turn it until the locking slide clicks into place. To remove Birdboss, release the slide, turn and lift out – the mount stays in position, ready for next time.
Additional Parts Required
To mount Birdboss on this RAILBLAZA product you will need:
- A Birdboss unit
- The Birdboss RAILBLAZA StarPort Adaptor Base (BRAB)
- This RAILBLAZA mount
Each item is sold separately unless specifically advertised as a package.
What’s Included
- 1 x RIBPort base with StarPort
- 1 x 3M VHB adhesive pad
Specifications
- Base size: approx. 115 x 150 mm
- Material: UV-stabilised AES and non-leaching PVC plastic, stainless-steel fasteners
- Weight: approx. 190 g
Compatibility
Accepts the Birdboss BRAB and any RAILBLAZA StarPort accessory. Please contact us before fitting to Hypalon/CSM or other specialist inflatable fabrics.
Installation
Clean the surface thoroughly with isopropyl alcohol and let it dry. Peel the backing from the 3M VHB pad, position the RIBPort and press firmly over the whole base.
Installation and Safety Notes
- Allow the 3M VHB adhesive to reach full bond strength (up to 72 hours) before fitting Birdboss.
- Inflate inflatable tubes to normal working pressure before fitting.
- Remove Birdboss when the boat is under way and in extreme winds (over 40 knots).
- Position Birdboss so the arms can rotate freely, clear of rigging, antennas, canopies and people.
- Adjust the Birdboss arms evenly so the unit stays balanced.
- Check the mount, StarPort lock and Birdboss fittings regularly, especially after rough weather.
- Rinse the mount and BRAB with fresh water after exposure to salt spray.
